Single Stage Big Gauge Co2 Regulator

$65.00 $80.00
Shipping calculated at checkout.
SKU: FZ-0100BK

1

In nature fish & plant life coexist in a balance beneficial to both; The plants thrive on the waste produced by the fish & the fish take cover in the flora. However, too much or too little CO2 will affect both plants & fish. Lack of CO2 will display pale leaves & stems, or stunted growth. This also means that the plants will be unable to properly saturate the water to provide more oxygen for your livestock. Too much Co2 can also having a damaging affect on livestock ultimately resulting in death. These issues are best avoided with the use of a drop checker & PH Pen/Monitor to keep livestock & plants thriving. CO2 plays a vital role in the life of fish. Too much or too little will not only harm the fish but may lead to the untimely death. A CO2 regulator ensures the level of CO2 is at proper saturation. Co2 will also minimize the negative effects of Algae. Algae is one of the biggest threats for plants & fish it can cause loss of plants & block gaseous exchange preventing your livestock from up-taking oxygen. Installing a Co2 system in the aquaria for injecting & monitoring carbon dioxide will ensure you have the proper saturation of both O2 & CO2.

The Fzone Big Gauge Series is a single stage regulator for injecting Co2 in home aquaria. As the compressed CO2 gas inside the cylinder is running low pressure, a single stage regulator has a much higher risk of letting off a huge volume of CO2 gas. A Dual Stage construction prevents E.O.T.D. (End Of Tank Dump) allowing you to maintain stable CO2 output & saturation.

2

High Performance 2.5W DC Solenoid

  • In-house manufactured 12v DC split-type solenoid.
  • Low power consumption 2.5W allows for the solenoid to be cool to the touch during operation.
  • High grade spring & piston ensures smooth operation.
  • Easily plug the solenoid into your timer to create a daily automated on/off schedule alongside your lighting system.
55

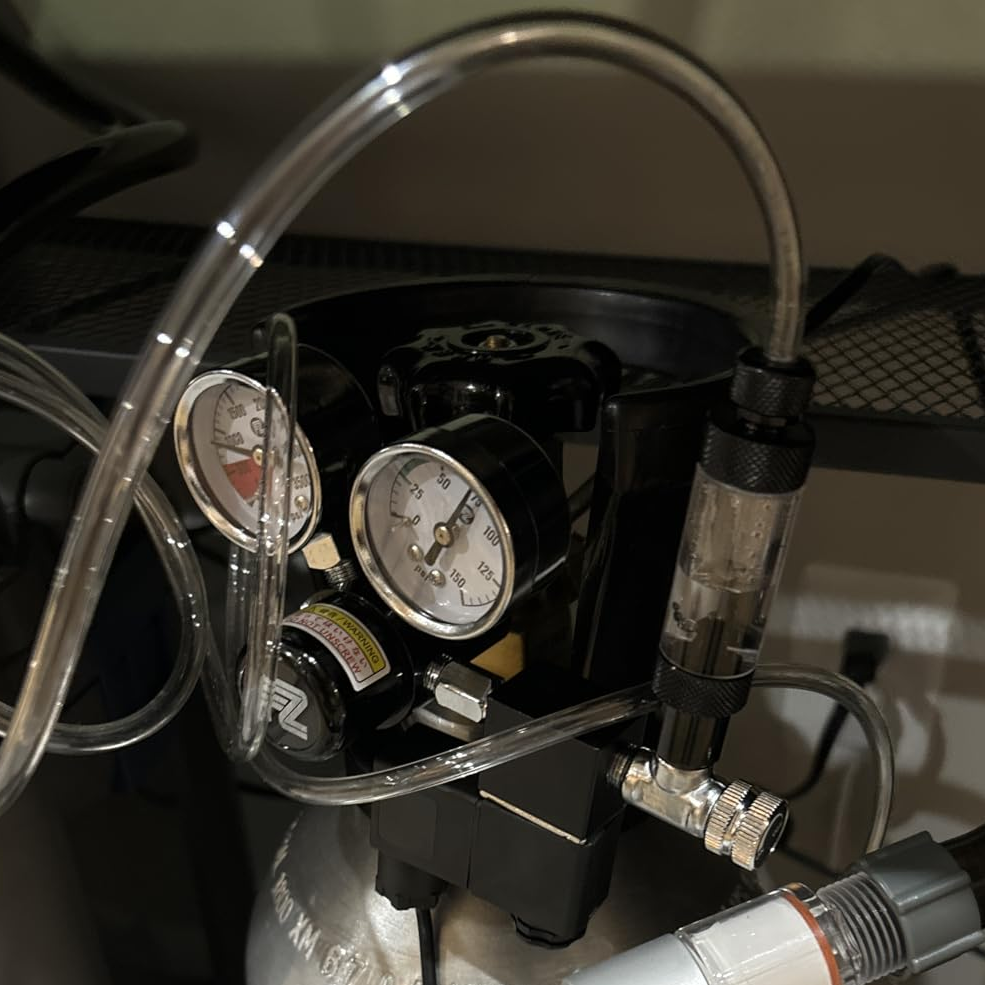

High Precision Needle Valve w/ Bubble Counter

  • Bubble counter includes built-in check valve. It is recommended you run two check valves with one being connected to your CO2 Tubing closest to the water line in your aquarium & the other being the bubble counter itself. (SECONDARY CHECK VALVE RECOMMENDED TO REPLACE ONCE A YEAR)
  • High precision needle valve allows for adjustable output flow rate as slow as 1 bubble every 5 seconds. (RECOMMENDED TIMER SOLD SEPERATELY, 2 HOURS BEFORE LIGHT ON & 1 HOUR BEFORE LIGHTS OFF).

5

Enhanced Sealing Material

  • Sealing material & structures can withstand temperatures between -45 to 180 degrees Fahrenheit.

  • Extra sealing rings included.



6

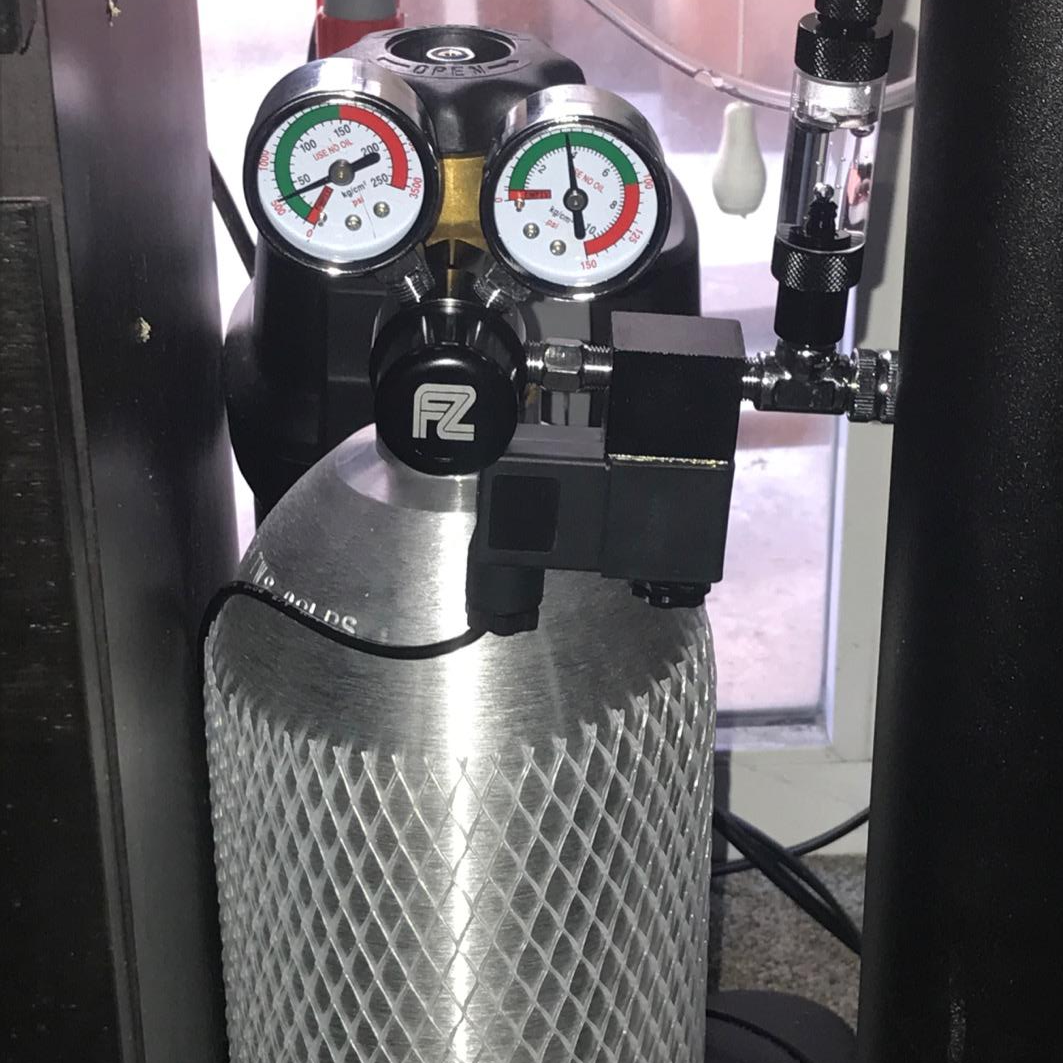

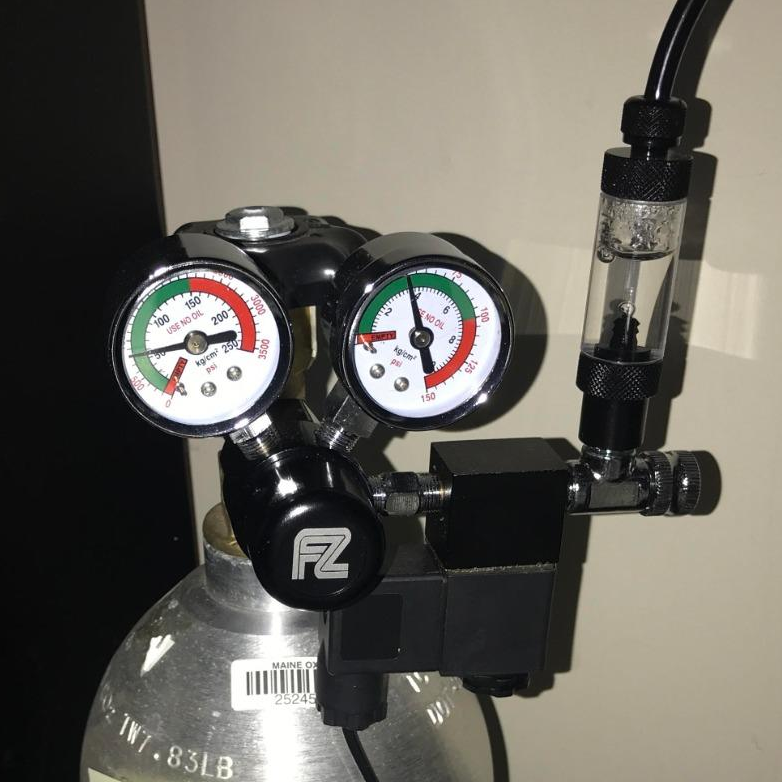

DUAL GAUGES MONITORS WORKING PRESSURE & INNER TANK PRESSURE


  • High-grade manufacturing will allow consistent flow rates & output pressure (35-60 psi).
  • Working pressure is non-adjustable 35PSI. Adjust the CO2 flowrate by controlling the needle valve.

  • 1.6inch gauge indicates working pressure & inner cylinder pressure. Left gauge shows working pressure. Right gauge indicates the CO2 cylinder’s inner pressure.



7

SOLID ALUMINUM BODY

  • Regulator body made of high quality aluminum alloy.

  • Gauges are made of 316 stainless steel.

  • Needle valves are nickel-plated to allow continuous usage without rusting.



What's Included in The Box?

COMES WITH:
  • Instruction manual
  • Extra O-Rings
  • Hex Wrench
  • Bubble counter w/ built-in check valve
  • Allen Wrench

7

MANUALS & WARRANTY INFO

The Fzone Co2 Mini Series Regulator comes with a one year warranty from the date you purchase your product & lifetime customer service support. If you incur any issues within the first year of owning your Co2 Regulator & a part needs to be replaced it is free of charge. The second year just pay shipping we'll cover the cost of parts. Anytime after just pay product cost & shipping for your replacement part.

NOTE: Fzone Studio's reserves the right to deny any warranty claims based on misuse or damage not caused by the normal function and/or use of our product.
